Iron Briquette Making Machine For Sale

  • Iron Briquette Making Machine For Sale
  • Iron Briquette Making Machine For Sale
  • Iron Briquette Making Machine For Sale
  • Iron Briquette Making Machine For Sale

Iron Briquette Making Machine For Sale

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Delivery Time: 15 Days
    Packaging: Container Loading
    Productivity: 6-10TPH
    Brand: Mingyuan
    Transportation: Ocean
    Place of Origin: Henan, China
    Supply Ability: 5 sets per month
    Certificate: CE, ISO
    HS Code: 8474809090
    Port: Qingdao Port,Tianjin Port,Shanghai Port

Basic Info

Model No.: 500

Product Description

Briquette Making Machines, sometimes it is called briquette forming machine, is a kind of ball press machine that converts various kinds of powdery materials into some pellets with different sizes and shapes, there are serveral different shapes, for example, round, pillow (oval), rectangle, and so on, it's widely used in various industries like mining, refractory, power station, metallurgy, energy resourse, heat supply fertilizer, and so on. the iron concentrate should meet the following requirements when the briquette making machine is used to make iron briquette, first its size should be 90-260mesh, second, it should be free of impurities with high hardness, to avoid the roller from damage. third it should be continuous feeding to make sure the finished product is in good shape. a complete briquette making machine consists of reducer, motor, rollers, and frame. and a complete iron briquette making system mainly includes dosing process----mixing process----drying process---and packing.

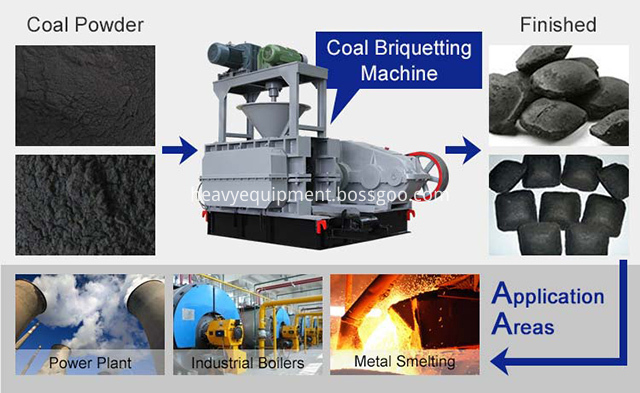

How The briquette Making Machine works

The core part of the briquette making machine is the two rollers, on which there are lined with depressed regular shapes accoridng to the client's requirement; via the driven of the gearbox, the rollers rotates with oposite direction, when the powdery mateirals feeds to the briquette making machines, the pressure reaches to the maximum when the distance gets to the smallest. then the briquette will be discharged when the roller rotates further.

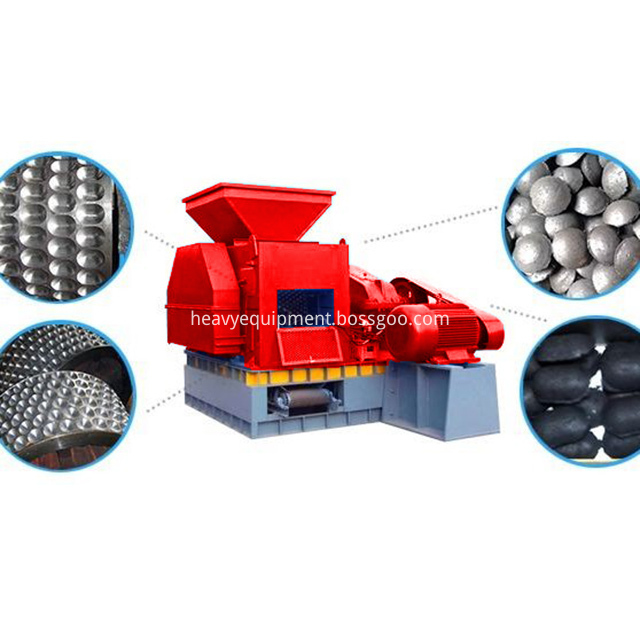

Briquette Making Machine

Iron Briquette Making Machine

Technical Parameters of Briquette Making Machines

Model Roller Dia.r
(mm)
Roller Width
(mm)
Roller Material Shaft
Speed(r/min)
Reducer Model Pressure Form Motor Power
(kw)
Capacity
(t/h)
YQJ-290 290 200 65Mn 18 ZQ350 Constant Wedge Pressure 5.5 1-2
YQJ-360 360 250 65Mn 18 ZQ400 Constant Wedge Pressure 7.5 2-4
YQJ-400 400 250 65Mn 18 ZQ400 Constant Wedge Pressure 11 4-6
YQJ-500 500 300 65Mn 13 ZQ500 Constant Wedge Pressure 18.5 6-10
YQJ-650 650 336 65Mn 13 ZQ650 Constant Wedge Pressure 30 10-15
Main Features of Briquette Making Machines


1 The roller is made by hard materials with good wear resistance and long life time
2 The service life of wearing parts is up to 4000 hours
3 The machines electricity coal reduce by 60%
4 The machine is easy to operate and maintain
5 The molding materials are energy saving, easy to transport
6 The final products are smokeless, non-toxic, none peculiar
7The end outlet shape of products can be all shapes
Briquette Making Machine PriceCharcoal Briquette Machines
