Drum Type Grain Pre Cleaning Machine
Basic Info
Model No.: 5XZP-100/220D
Product Description

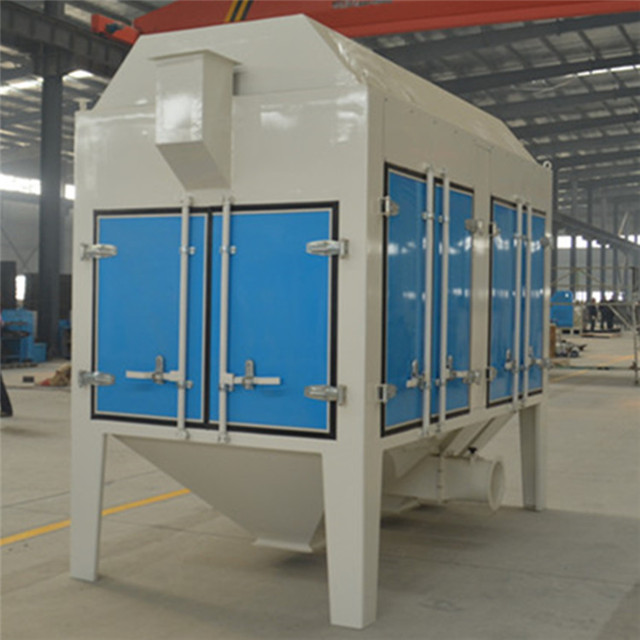

Drum Type Grain Pre Cleaning Machine
Drum Pre Cleaner is the common grain precleaning machine. Drum Type Pre-cleaner is used to quick remove the big impurity and small impurity from grain. Drum cleaner has big capacity range from 20 ton per hour to 100 ton per hour. The precleaner machine is widely found in flour milling plant, grain station. Pre cleaner also was seen before the big silo. The pre cleaning equipment can be single sieves or double sieves. Which correspond to remove big impurity or both big and small impurity.
Precleaner consists of frame, inclined drum, gear, support components. It is mainly used to remove the large impurities. When the materials fall into the rotating drum, the materials that smaller than the mesh hole, which will fall to the outlet, and large impurities will rotate in drum and release from the front outlet. About the power of motor, if you have special requirement for it, please tell us in advance, we can make some change for you. High quality frame with strong durable motors. We will make the special frame for clients in order to suit the processing line of Seed Cleaner Cum Grader,Specific Gravity Separator,Air Blowing Type Destoner,Seed Packing Machine.
Features:
1. High capacity for cleaning larger and smaller impurities
2. Heavy duty roller support system for high throughput operation
3. Adjustable drum angle for flexible process and high efficiency
4. Outer screen cleaning mechanism for clog free production
5. Reliable roller chain drive mechanism for stable processing
6. Dust cover structure on top/ at stream outlet for hooking up into central cleaning system
7. Option of portable structure
8. Laser cutting applies to sheet metal components for quality and accuracy
Specification:
| Model | 5XZP-100/220D |
| Power | 0.75kw |
| Capacity | 20-80T/H (depend on material) |
| Sieve layer | one or two |
| weight | 950kg |
Product Categories : Drum Type Pre-Cleaner
